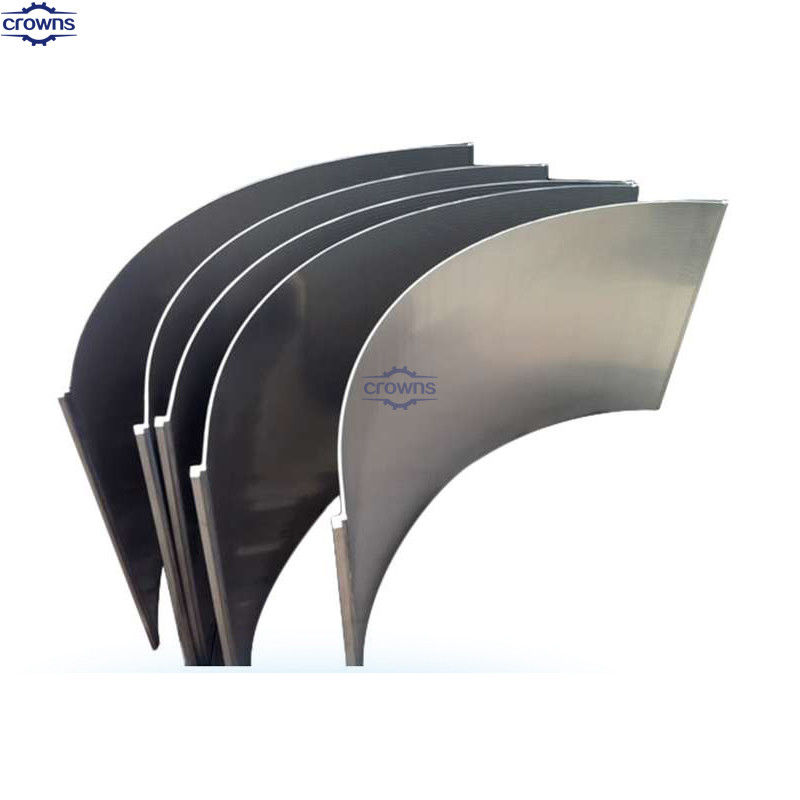

304 Wedge wire Flat Coanda screen stainless steel sieve bend screen
  • 304 Wedge wire Flat Coanda screen stainless steel sieve bend screen
  • 304 Wedge wire Flat Coanda screen stainless steel sieve bend screen
  • 304 Wedge wire Flat Coanda screen stainless steel sieve bend screen
  • 304 Wedge wire Flat Coanda screen stainless steel sieve bend screen
  • 304 Wedge wire Flat Coanda screen stainless steel sieve bend screen
  • 304 Wedge wire Flat Coanda screen stainless steel sieve bend screen
  • 304 Wedge wire Flat Coanda screen stainless steel sieve bend screen

304 Wedge wire Flat Coanda screen stainless steel sieve bend screen

Place of Origin china
Brand Name crowns
Certification CE
Model Number customized
Product Details
Technique:
Welding
Surface Treatment:
Polishing/Electroplating
Operating Pressure:
0.2MPa - 1.6MPa
Installation:
Horizontal/Inclined
Angle:
15° - 180°
Product:
Sieve Bend Screen
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
$10-$95 / unit
Packaging Details
wooden carton
Delivery Time
30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
3500SETS/PER YEAR
Product Description

304 Wedge wire Flat Coanda screen stainless steel sieve bend screen 0

304 Wedge wire Flat Coanda screen stainless steel sieve bend screen



Product Description



The sieve bend screen – also called bend screen – comprises a curved screen for filtration. The bend screen provides filtration by guiding the particles along with the curved sieve filter screen. The shape of the sieve bend screen offers a high filtration rate because of the forces exerted by the particles in the flow over the sieve bend. Thus, it is used for different applications that benefit from bend screen geometry.The Sieve Bend is also known as a DSM Screen, as it was developed by the Dutch State Mines. Sieve Bend Screens are useful forsizing and dewatering applications to separate solids from liquids, as well as solid/solid separation for dry feed applications.



Main Advantages

Outstanding filtration performance
Customized bend screen design
Corrosion resistance Durable
long service life
Precise open gap
High capacity compared to flat panel wedge wire screen


Parameters
Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range Up to 6000mm
Width Range Up to 6000mm
Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5x2.5 2x3 2x4 3x5
Support Rod 1.5x2.5
2x3
1.5x2.5
2x3
1.5*2.5
2x3
2x3 3*5 3x5 3x5
4*6
5*8
Angle 90°,120°,140°,150°,160° etc.
Arc height 10mm,15mm,20mm,50mm or depend on you size of screen panel.
Frame No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.
Note Customized according to requirement



304 Wedge wire Flat Coanda screen stainless steel sieve bend screen 1

304 Wedge wire Flat Coanda screen stainless steel sieve bend screen 2304 Wedge wire Flat Coanda screen stainless steel sieve bend screen 3







304 Wedge wire Flat Coanda screen stainless steel sieve bend screen 4





FAQ



Q1: What is the Model Number of the Sand Mill Sieve Screen?

A1: The Model Number of the Sand Mill Sieve Screen is sieves screen-7HRB.

Q2: Does this product have any Certification?

A2: Yes, this product has CE Certification.

Q3: What is the Minimum Order Quantity?

A3: The Minimum Order Quantity is 10 SETS.

Q4: What is the Price of the Sand Mill Sieve Screen?

A4: The Price of the Sand Mill Sieve Screen is $36-$95 / Set.

Q5: What is the Packaging Details?

A5: The Packaging Details is wooden carton.
