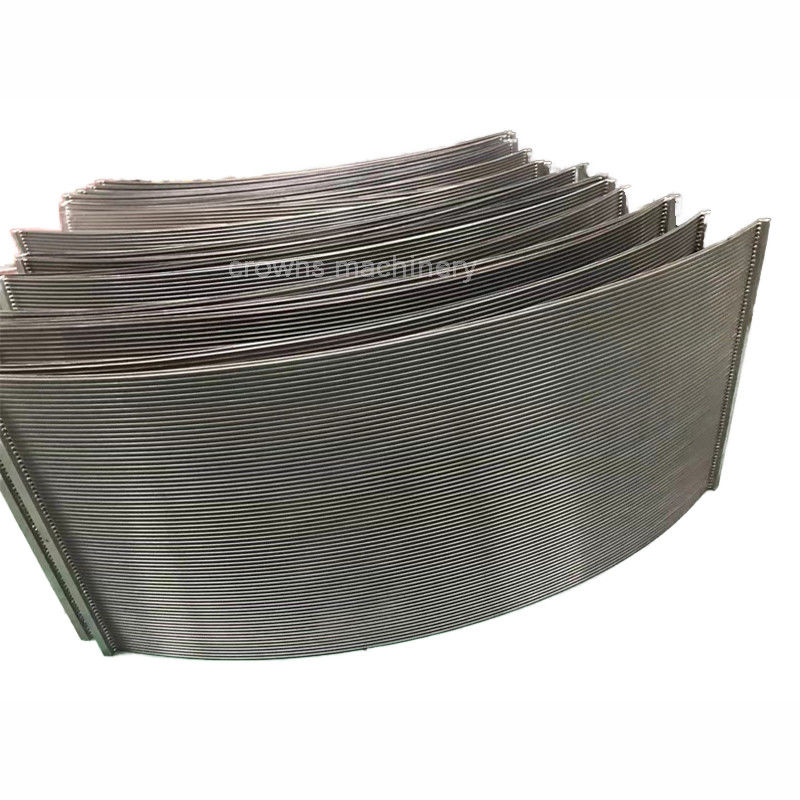

Sieve Bend Screen
>
|
|
| Place of Origin | china |
| Brand Name | crowns |
| Certification | CE |
| Model Number | customized |
Introduction
A sieve bend screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.
Stainless steel wedge wire screens offer a reliable and efficient solution for a wide range of filtration and separation needs
across various industries, making them a valuable component in many industrial processes.
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length Range | Up to 6000mm | ||||||
| Width Range | Up to 6000mm | ||||||
| Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5*2.5 2x3 |
2x3 | 3*5 | 3x5 | 3x5 4*6 5*8 |
| Angle | 90°,120°,140°,150°,160° etc. | ||||||
| Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. | ||||||
| Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. | ||||||
| Note | Customized according to requirement | ||||||
