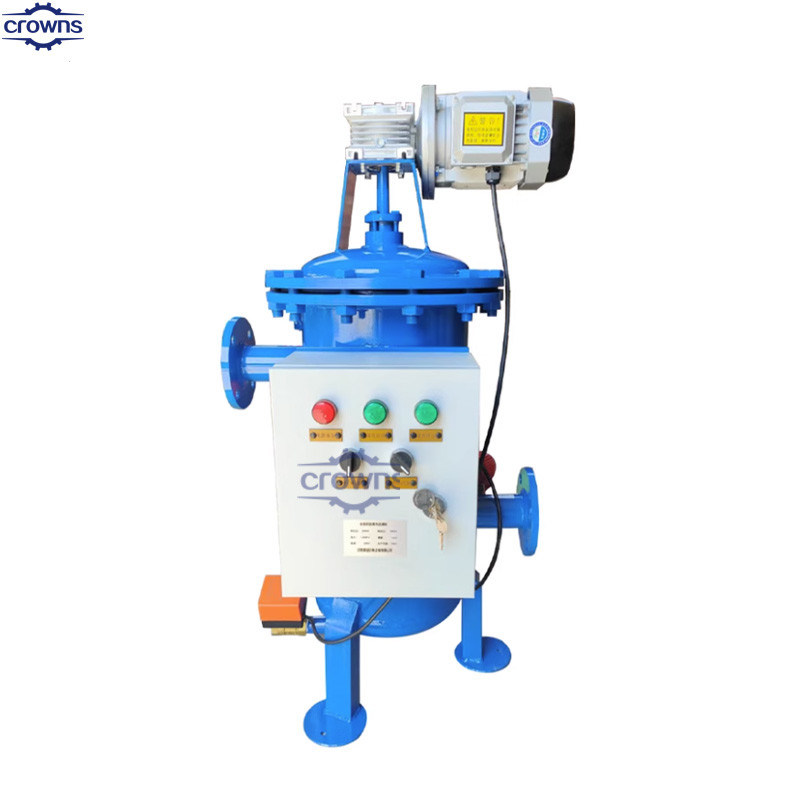

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron)
  • Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron)
  • Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron)
  • Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron)
  • Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron)

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron)

Place of Origin China
Brand Name Crowns
Certification ISO 9001; CE
Product Details
Maximum Flow:
1.5-110 M3/h, Inquire The Most Suitable Specifications From Our Company According To Filtration Rating And Impurity Contents.
Pressure:
0.1-1.6 MPa
Thickness(mm):
2
Design Pressure:
10bar
Bag Size:
#2(180*810mm)
Filtration Degree:
10~100micron
Weight:
100kg
Filter Elements:
222 O-ring,226 O-ring
Filtration Micro Rating:
25um-1500um,According To Customer Demand
Control Time:
10--200s
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
$1100-$6850/set
Packaging Details
carton
Delivery Time
20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000SETS/PER YEAR
Product Description

Automatic Self-Cleaning Filter: Protect Water Treatment System, Fine Filtration (20-400 Micron)

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 0

Automatic backwash filter is composed of the drive mechanism, the control circuit (including the pressure switch), filter components, cleaning device, connecting flanges and other major component parts.It cleans sewage by the drive motor and the electric valve automatically, the operation mode is automatic operation (option:manual operation), with timing control or pressure difference control. Its automated part is controlled by reliable PLC programmable controller. Water enters into the filter, the mechanical impurities are intercepted.When the impurities accumulate for a period, reaches 0.05MPa, then the differential pressure switch will send signal, while the PLC command is issued, transmission motor starts, the drain valve opens, the impurities deposited on the filter is brushed away, and drain out. The whole process is without personnel, without downtime. Besides, the device also has the function of timing and manual cleaning to ensure that the outlet water is safe under any circumstances.



Self Clean Filter As Fine Filtration
Protection water treatment system nozzle from blockage.

Use a stainless steel screen mesh to remove the silt, sand and scale dirt from the water. Irrigation water containing few organics could also be filtered.

The available flow rate is from 20m3/h to 1500m3/h.

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 1

Features


1. Filtration precision: 120 micron standard in irrigation.(20-400 micron)
2. Material: carbon steel with pickling phosphating inside and outside with good antiseptic effect
3. Screen: SS304 with good antiseptic
4. Space: Small with large flowrate
5. Backwash: Automatic and the water supply won't stop when cleaning
6. Water consumption: Less than 1% of filtering water,pressure loss don't over 0.02 Mpa
7. Customzied service: Pressure,material and power if there are specialized requirement



Micron Rating
30-3000μm
Maximum Operating Pressure
1.0MPa/1.6MPa
Flow Rate Range
4~354m3 /h
Maximum Operating Temperature
200℃
Housing Material
SUS316L/SUS304/CS
Element Material
SUS316L/SUS304
Sealing Material
NBR/FKM/Silicone/PTFE/EPDM
Explosion Proof
Explosive-proof components are used for flammable and explosive operating conditions
Be support to cunstomized
yes





Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 2

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 3

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 4

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 5





















  • Features:
  • Product Name: Industrial Water Filtering
  • Max Working Pressure: 100, 150, 300Psi, OEM
  • Type: Industrial Water Filtering
  • Filter Efficiency: High
  • Productivity: 20000L/Hour
  • Bag Filtration rate: 0.5, 1 5, 10, 20, 50, 100, 200 To 500 Micron
  • Fridge Water Filter
  • Industrial Wastewater Treatment Equipment
  • Industrial Water Deionizer







Packing and Shipping:

Industrial Water Filtering Packaging and Shipping

The industrial water filtering system is packaged carefully in a secure and sealed container for safe transport. All necessary components are securely fastened to prevent movement during transport. The container is labeled with the product name, serial numbers, and other information for easy identification. The package is then shipped to the customer in a safe and timely manner.



Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 6

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 7











Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 8





Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 9

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 10

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 11

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 12

Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 13





Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 14



Features and Benefits:
1. Pneumnatic-driven scraper disc

2. Non-interrupted online self cleaning

3. Backwash discharge by differential air pressure

4. SS304/SS316 wedged restrainer baskets

5. 25~1000 micron


Applications of PP filter bag housing:
1.Ink,paint&coating filtration

2. Resin&dye filtration

3. Adhesives,coolant&lubricant filtration

4. Syrups,edible oil&soft drink filtration



Automatic Self-Cleaning Filter: Fine Filtration (20-400 Micron) 15



Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

also water electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.


Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
