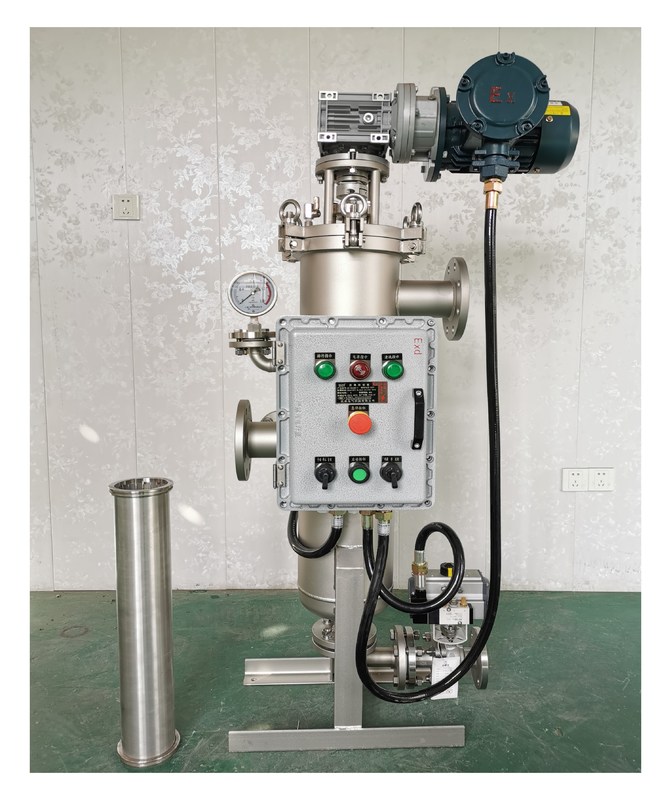

1.0MPa Automatic Self Cleaning Filter DFX Motor Drives SS304 / SS316

DFX Motor Drives External Scratch Self Cleaning Filter/High Efficiency/SS304/SS316/2205/2507

The typical components of an automatic self-cleaning filter include:

1. Filter Housing: This is the outer casing that contains the filter elements and the self-cleaning mechanism.

2. Filter Element: The filter element is the core component responsible for capturing and retaining the particles from the fluid.

3. Self-Cleaning Mechanism: This is the automated system that removes the accumulated debris from the filter element, keeping it clean and maintaining filtration efficiency. There are several types of self-cleaning mechanisms, including:
   a. Backwashing: In this method, the flow of the fluid is temporarily reversed, dislodging and expelling the trapped particles from the filter element.
   b. Brushing: Some self-cleaning filters use brushes to physically clean the filter surface, scraping off contaminants.
   c. Ultrasonic Cleaning: Ultrasonic waves are used to shake loose the particles adhering to the filter, making them easier to flush out.
   d. Pneumatic Cleaning: Compressed air or gas is used to dislodge the contaminants, pushing them out of the filter.
   e. Rotating Discs or Drum: Rotating discs or drums with cleaning blades or nozzles can sweep the filter surface to remove debris.

4. Control System: The self-cleaning filter is controlled by an automated system that monitors various parameters such as pressure drop, flow rate, or time intervals to trigger the cleaning process. Some advanced systems can also be controlled remotely or integrated into a larger process control system.
