Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration
  • Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration
  • Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration
  • Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration
  • Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration
  • Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration
  • Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration

Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration

Place of Origin china
Certification CE
Model Number CS-YS
Product Details
Usage:
Liquid/Solid Separation
Support Rods:
Round, Square, Triangular
Reach:
1~500um
Wire Diameter:
0.5mm-3mm
Type:
Filter Cylinder
Customization:
Available
Highlight:

Paper Pulp Filtration Wire Screen Basket

,

Pressure Wedge Wire Screen Basket

,

Stainless Steel Wedge Wire Screen Basket

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
$150-$1500/Set
Packaging Details
wooden carton
Delivery Time
30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
3000SETS/PER YEAR
Product Description

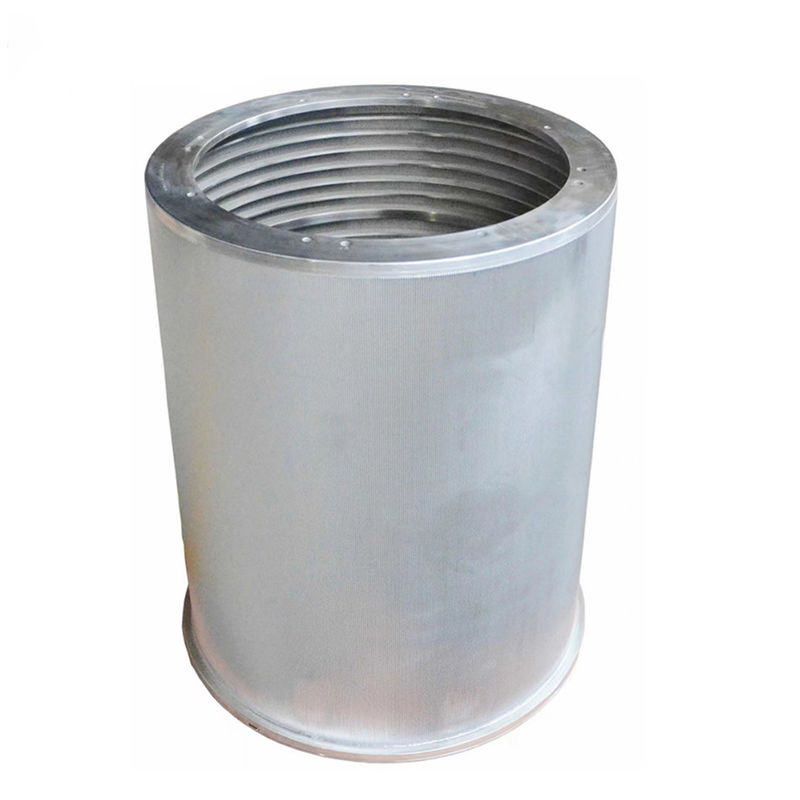

Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 0



Pressure screen stainless steel wedge wire screen basket for paper pulp filtration





Application
Inflow pressure screen basket is classified by the flow way of the pulp,but the inflow pressure is divided to
out rotary wing and inner rotary wing. The characteristic of out rotary wing inner flow pressure screen is that
the rotary wing is in the outside of screen. When it works, the heavy impurity in the pulp can be tossed outside
due to centrifugal. In the mean time fiber is nearby the screen due to it is tiny mass. With this specialty, it has
the performance of seldom pulp plugging, less wear and moderate of filter.

Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 1




Technical Parameters:

Production area
0.1-10m2
Plate thickness
6-12mm
Material
SS201,304,316,316L
Standard sieve hole size
More than 1.2mm
Diameter of screen
Φ19-900mm
Inter pulp consistency(%)
1-4





Relevant Images

Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 2

Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 3



Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 4

Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 5

Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 6Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 7

Pressure Screen Stainless Steel Wedge Wire Screen Basket For Paper Pulp Filtration 8







FAQ:

Q1 : Where is your factory located?

A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?

A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?

A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.

Q4 : Will you offer the pre-sales service?

A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the machine?

A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.

Q6 : What is the delivery time of the machine?

A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?

A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?

A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
